Scrap copper wire stripping machine
Scrap copper wire stripping machine
Scrap copper wire stripping machine, it adoptsadvanced and intelligent technology which separates and recovers copper and plastic from waste wires and cables, and at same time protects environment.This scrap copper wire stripping machine has changed traditional method which burning wires and cables,sources recovered by mechanical crushing, airflow delivery, airflow andvibration separation, dust collection system cleans the dust and fiber duringproduction, emit qualified air to atmosphere. This scarp copper wire stripping machineimproves the workingcondition for workers, and it is Eco-friendly plant. Not only apply for cablesand wires, but also apply for plastic and timber recycling.

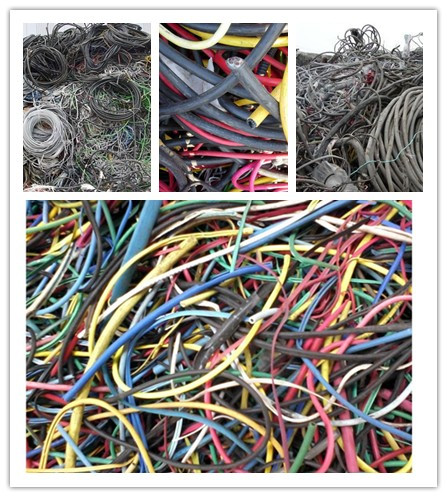

Scrap copper wire stripping machine raw material
Doing scrap copper wire stripping machine is used for recycling: Computer wire, Automobile/car wire, Telephone wie, Communication cable, electric wire&cable etc.
Raw material of scrap copper wire stripping machine

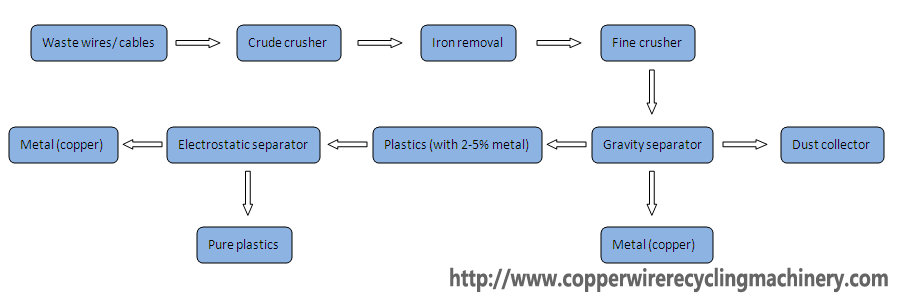

Scrap copper wire stripping machine working process
The copper wire raw materials will be firstly put into the crusher, after crushing, our pulse air separator machine will make the copper and plastic suspended on the screen. Then it can separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator
Working process of scrap copper wire stripping machine
Scrap copper wire stripping machine technical data
|
Item |
Model |
Capacity(kg/h) |
Power(Kw) |
Size (m)(L*W*H) |
Weight(T) |
Remark |
|
1 |
DY-400 |
100-200 |
28.5 |
3.5×1.5×3.0 |
1.8 |
|
|
2 |
DY-600 |
300-500 |
36.5 |
4.0×1.7×3.0 |
3.0 |
|
|
3 |
DY-800 |
500-800 |
90.0 |
4.5×1.5×4.2 |
7.7 |
Doubling crushing system |
|
4 |
DY-1000 |
800-1000 |
104.2 |
4.8×1.8×4.2 |
9.4 |
Doubling crushing system |

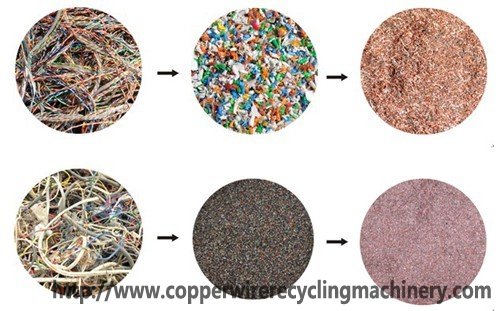

Scrap copper wire stripping machine final product
Final product of scrap copper wire stripping machine
